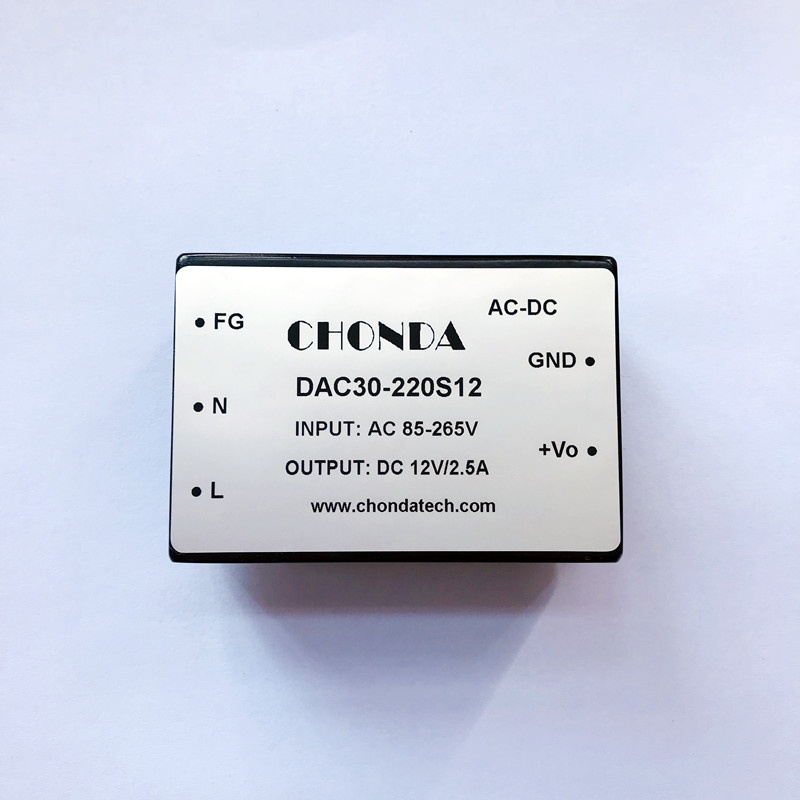

AC DC 220V to 12V

AC DC 220V to 12V

AC DC 220V to 12V

  • Product No.: 20221218193452


AC DC 220V to 12V

Mainly founction features:

Wide range of input voltage

Broadband noise filter of input

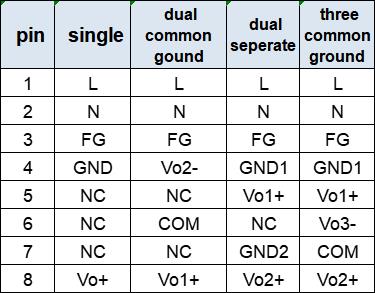

Pin function compatible

input over voltage protection,short circuit over voltage protection

Fast dynamic response

Comply with UL 1950. IEC 950 safety regulation

Power from 20W to 30W

Industrial standard products design,international size,high efficiency

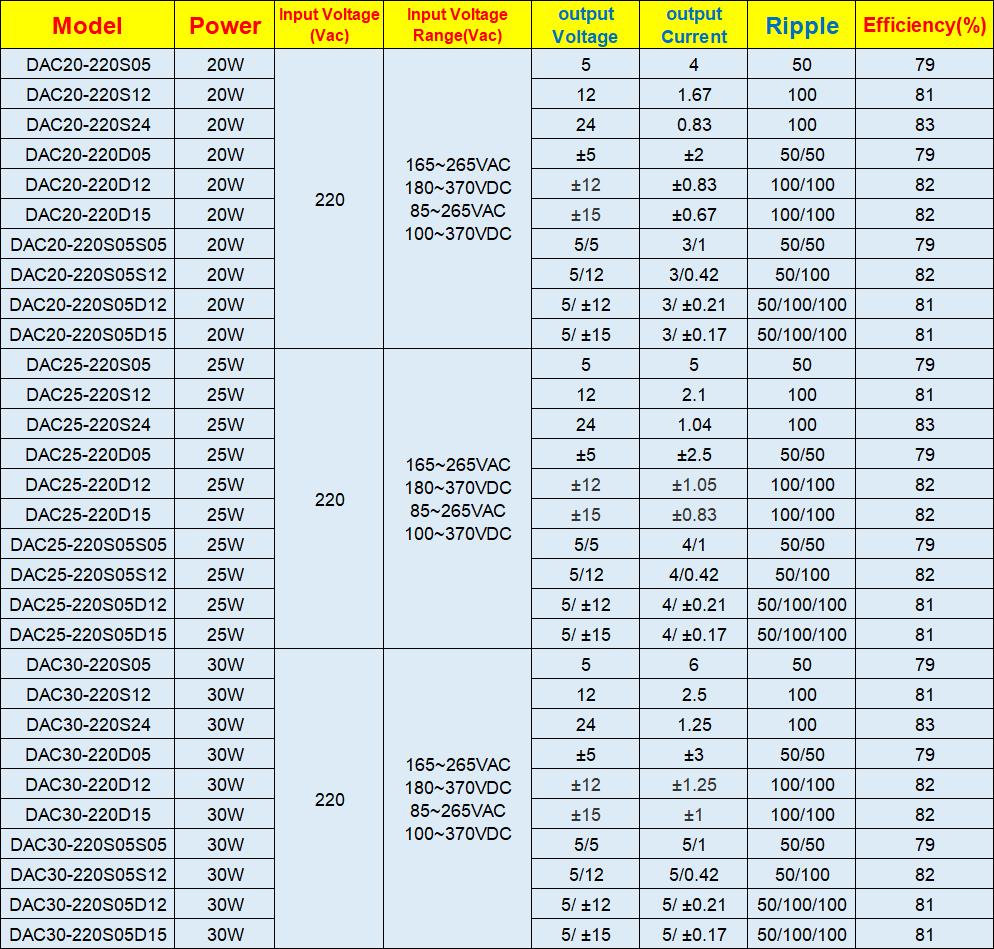

Products type:

Input characteristic:

Input voltage range:  220VAC   165~265VAC 180~370VDC

    85~265VAC 100~370VDC

Output characteristic:

Output voltage steady accuracy: ±1%

Line Regulation: ±1%

Load Regulation: < 0.5%

Temperature Coefficiency : 0.02% /C

Output Current Limiting : 120%  Typ)

Dynamic response: 400 μs

General characteristic:

Switching Frequency: 50 - 100 KHz

Isolation Resitstance: 200 MΩ

MTBF:  500000 H

Isolation Voltage

Input-Output 2000VAC / 1 min

Output-Case 2000VAC / 1 min

Output-Case 2000VDC / 1 min

Environmental Characteritics

Operation Temperature

Industry: -25+60

Military ǀ:  -40℃+70

Storage temperature

Industry: -25+105

Military ǀ:  -55+105℃

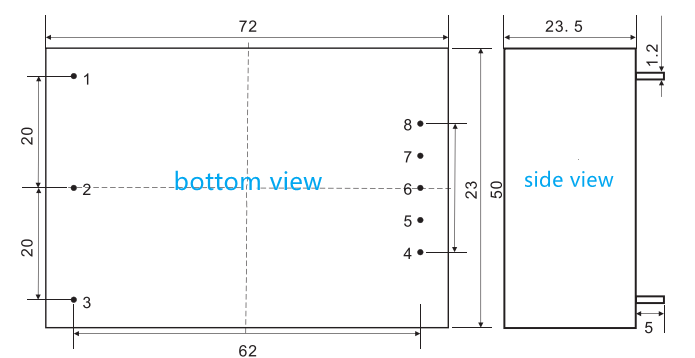

Size: 770sectional dimension:1.0mm  terminal accuracy:0.1mm    other accuracy: ±0.5mm
