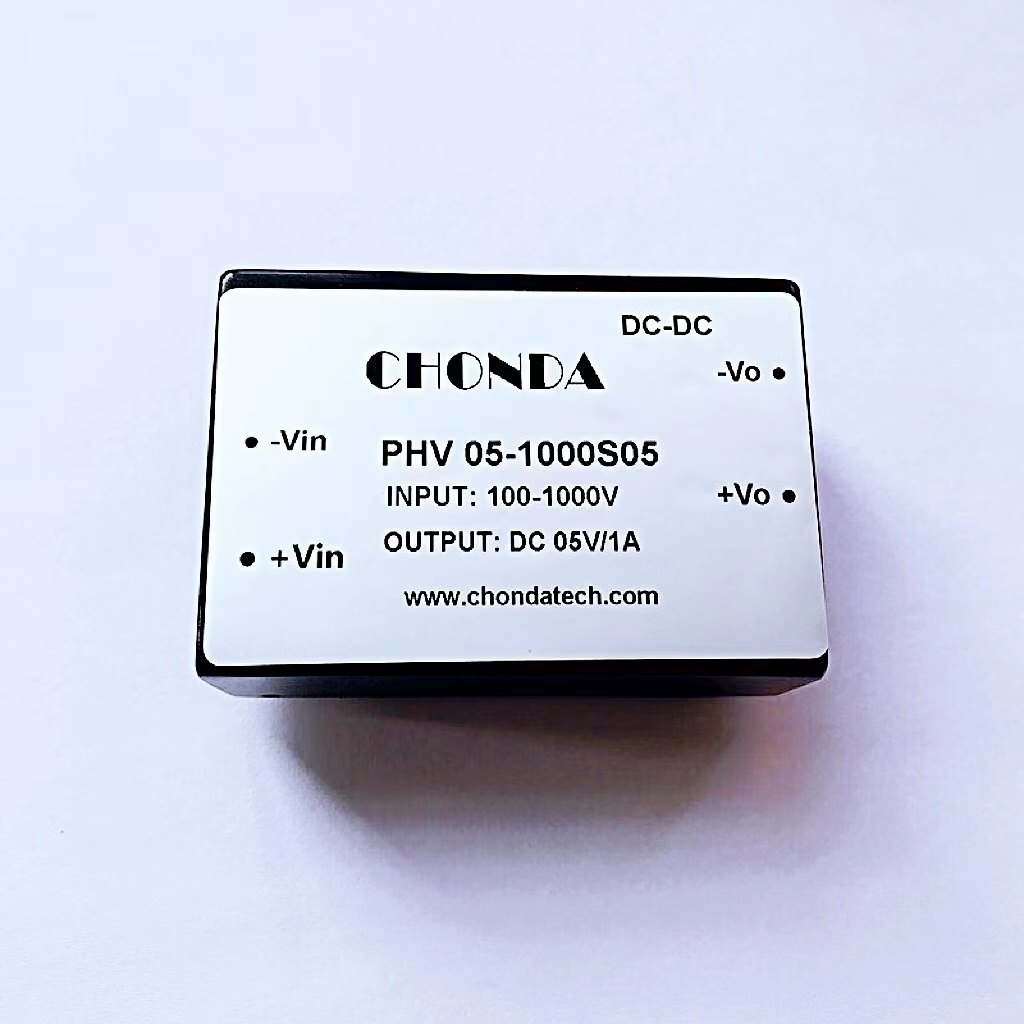

PV solar power supplies series has a wide range of high DC input, output stability, high efficiency, low ripple noise, high reliability features, specially developed for the photovoltaic industry power supply, application in the combiner box, controllers, etc., can provide customers with devices stable operating voltage.

Mainly founction features:

Input:  DC DC wide input voltage 100-1000VDC

Input:  DC DC wide input voltage 210-1200VDC

Protection:  input over voltage protection,short circuit over voltage protection

Outline sealed:  ultra-thin small integration design, high efficiency high density

Cooling method:  Natural cooling, without additional radiator

Power:  5-25W

Industrial standard produts design, international size

Products type:

Input characteristic:

Input voltage range:: 100～1000VDC（210-1200VDC）

Input current:   100VDC

PHV05       100mA , typ

PHV10       230mA , typ

PHV15       250mA , typ

surge current    10A (TYP) 100V    20A (TYP) 1200V

Output characteristic:

Output voltage steady accuracy: ±1%

Original source effect: ±0.5% (typ)

Load adjust rate: (10%~100%) ±2% (typ)

Min load: 0%

Output ripple and noise(peak value)： 100mV(typ) (20MHz Bandwidth)

Short-circuit protection long time Continuous,/automatic resume

Output over exceed current protection ≥1.1 times

General characteristic:

Woking temperature: -40℃～+55℃

Power reduction rate:3.75% / ℃

Storage temperature:-40℃～+105℃

Outshell temperature:+80℃ max

Cut off current time:80ms(typ)/ at Vin:100VDC

Start delay time:500ms(typ)/ at Vin:1200VDC

Dynamic response: 25% standard load move rate ±4%/500uS

Humidity: 95% max

Temperature drift: 0.02%/℃

Switching frequency: 65-100kHz(typ)

Efficiency:  75%(typ)

Insolation: 4000VDC/1Min（special 3000VAC）

Insolation resistance input to output : 500Vdc 100000G

Leakage current:0.03mA RMS typ. 1200VDC

Saftey class: CLASS Ⅰ

MTBF: >215,000h @25℃

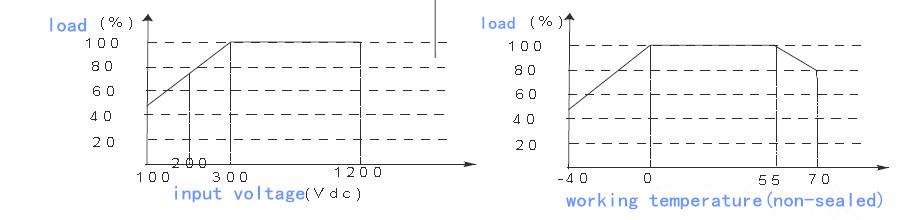

Input voltage and the load relationship characteristic:

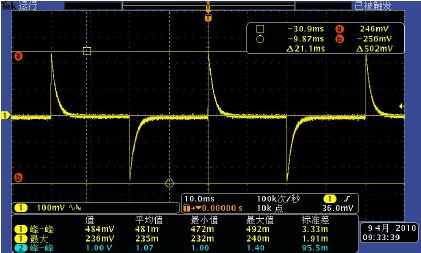

Dynamic load response:


动

Size:

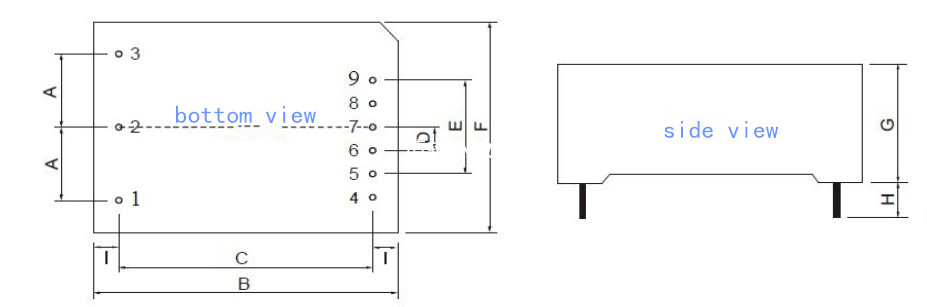

outside shell size

A	B	C	D	E	F	G	H	I
20	70	62	5.75	23	48	23.5	≥6.0	4

sectional dimension:1.0mm  terminal accuracy:0.1mm    other accuracy: ±0.5mm

1	2	3	4	5	6	7	8	9
No Pin	-Vin	+Vin	No Pin	-Vo	No Pin	No Pin	No Pin	+Vo
