Mainly founction features:
Input: DC DC 3.3V 5V 12V 24V
Protection: input over voltage protection,short circuit over voltage protection
Outline sealed: ultra-thin small integration design, high efficiency high density
Cooling method: Natural cooling, without additional radiator
Power: W5-1W
Industrial standard produtcs design, international size
100%Burn-In
Low Ripple and Noise
Custom Design Availbale
4 Pin SIL/ 8 Pin DIL Package
Input Filter With Internal Capacitor
RoHS Converter Certified By SGS
Net Weight:1.4/1.8g Typical
Input/Output Isolatian:1000Vdc
（Specifications typical at Ta=+25℃，Nominal input voltage,Rated ouput current unless otherwise noterd）

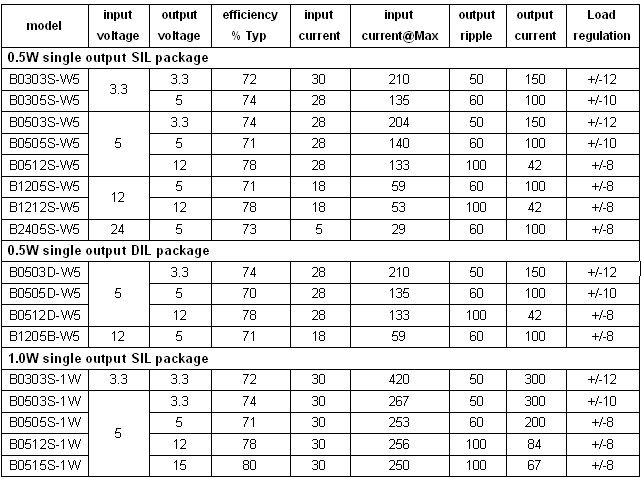

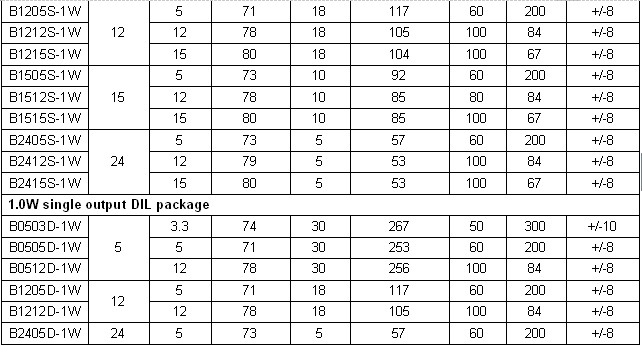

Products type:

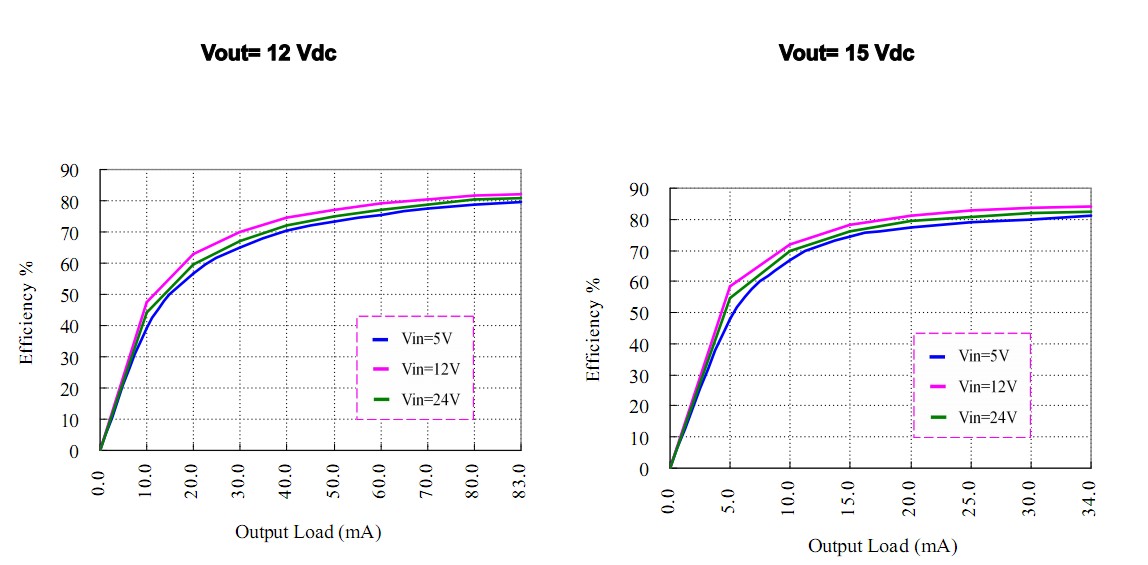

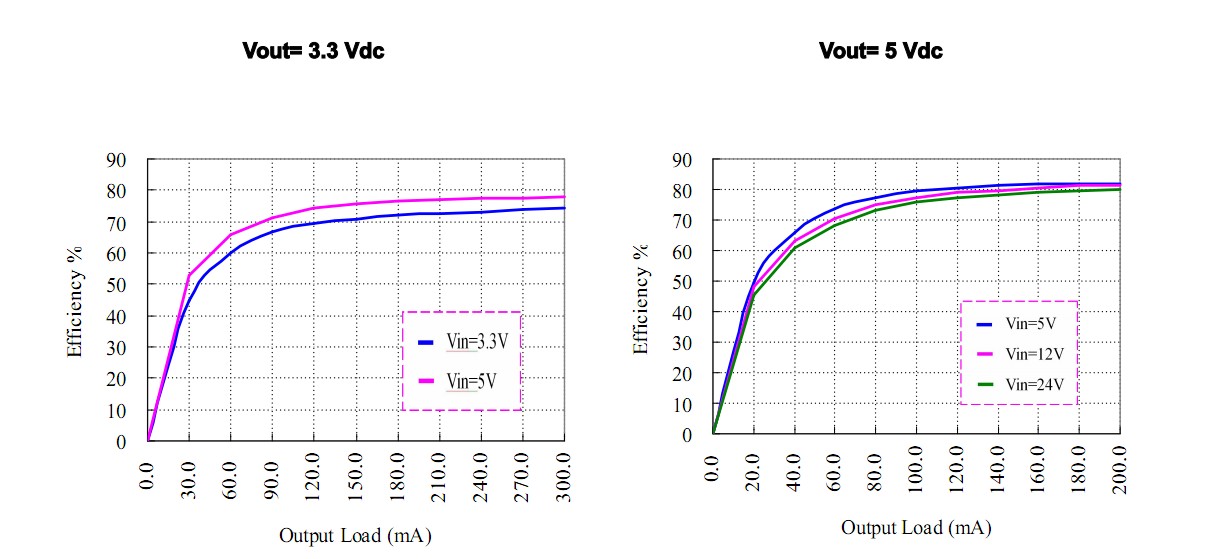

Input /Output characteristic:
Input voltage range: normal min Typ max unit
5V Input Model 4.5 5 5.5 VDC
12V Input Model 10.8 12 13.2
24V Input Model 21.6 24 26.4
Output voltage accuracy: +/-5.0 %
Switching frequency:100KHz�
Temperature coefficienty:+/-0.01(Typ) � a+/-0.02 max�
Isolation voltage: 60 second/0.5ma 1000Vdc
Isolation resistance: 500Vdc 1000mΩ
Isolation capacitance: 1KHz/250mV rms 40pF
Max line regulation： 1.3%
General characteristic:
Woking temperature: -40℃～+85℃

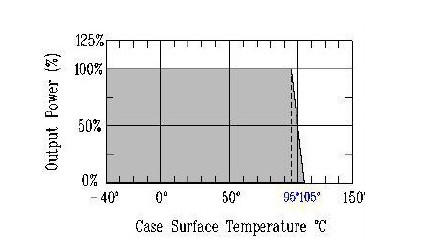

Power reduction rate:3.75% / ℃
Storage temperature:-40℃～+105℃
Outshell temperature:+80℃ max
Cut off current time:80ms(typ)/ at Vin:100VDC
Start delay time:500ms(typ)/ at Vin:1200VDC
Dynamic response: 25% standard load move rate ±4%/500uS
Humidity: 95% max
Temperature drift: 0.02%/℃
Switching frequency: 65-100kHz(typ)
Efficiency: 75%(typ)
Insolation: 4000VDC/1Min（special 3000VAC）
Insolation resistance input to output : 500Vdc 100000G
Leakage current:0.03mA RMS typ. 1200VDC
Saftey class: CLASS Ⅰ
MTBF: >215,000h @25℃
Input voltage and the load relationship characteristic:
Dynamic load response:

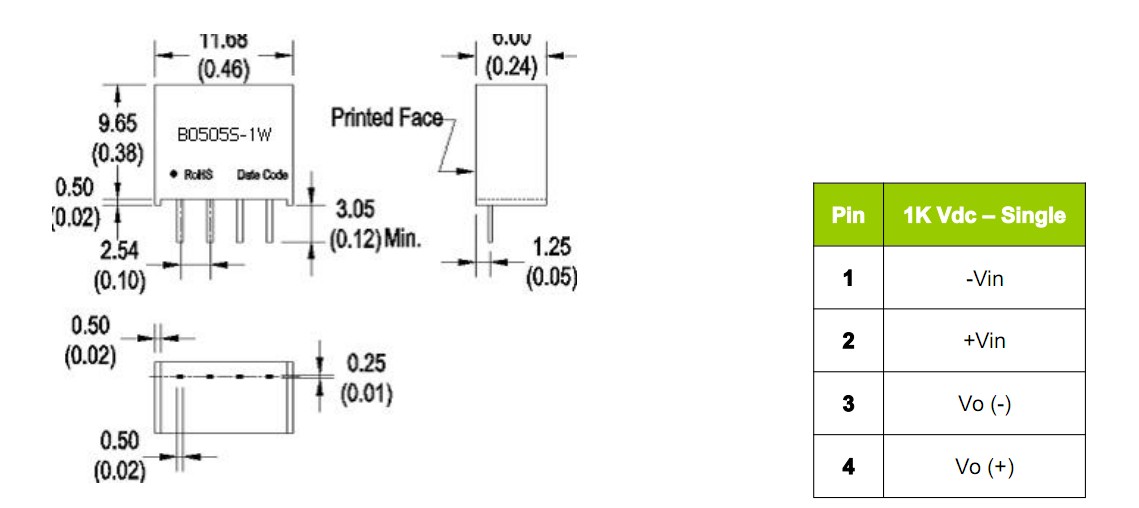

Single output SIP Size:

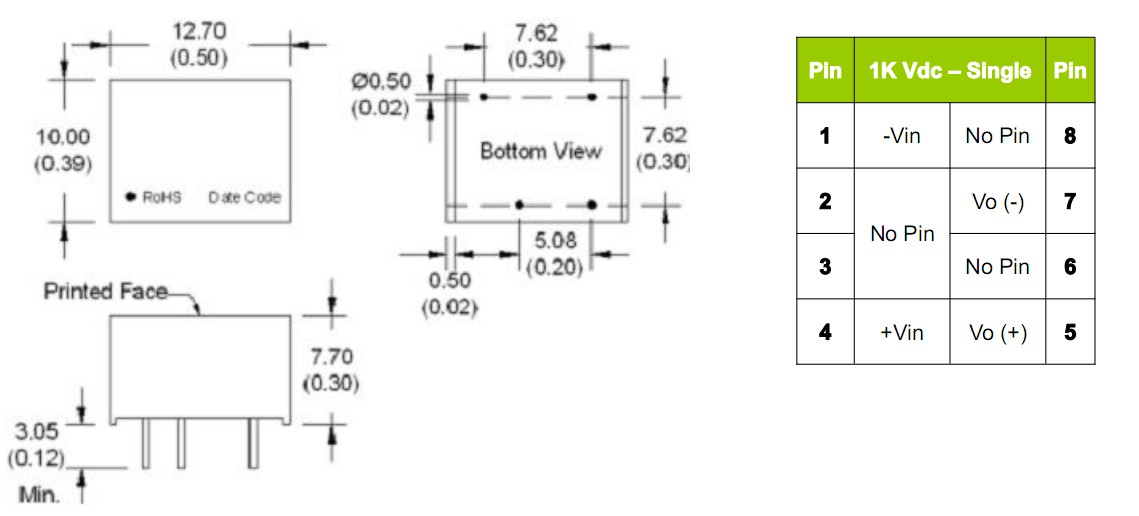

Single output DIP Size:

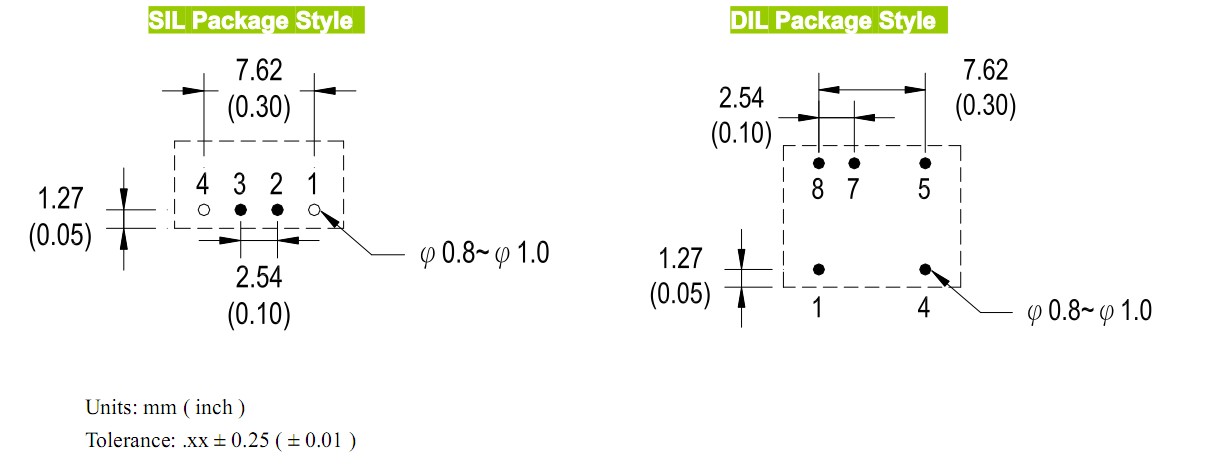

Recommand footprint Size:
